Viewing Undefined File Tags

You can view a list of all files that are associated with file tags, but those file tags have not been defined. This might occur, for example, if you have associated a file tag with a topic and then later change the name of the tag or file tag set. The old tag or set name is still used for the topic. Therefore, a problem exists. From the Undefined File Tags window pane, you can open the file in question and fix the undefined tag. You can also quickly rename or remove multiple file tag occurrences in a single batch.

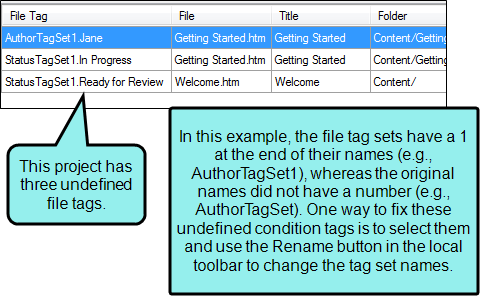

The Undefined File Tags window pane with file tag sets.

How to View Undefined File Tags

  1. Open a project.

  2. Do one of the following, depending on the part of the user interface you are using:

    • Ribbon Select Analysis > Undefined Items > Undefined File Tags.

    • Summary Window Pane Double-click the row that mentions undefined file tags.

    The Undefined File Tags window pane opens, displaying a list of undefined file tags.

  3. To see more of the information in the window pane, drag the divider bar to make the pane wider.
    • File Tag Displays the name of the file tag set and the tag within it. The file tag set is listed first, followed by a period and then the name of the file tag (e.g., AuthorTagSet.Bob).
    • File Displays the name of the file.
    • Title Displays the properties title of the file (if any).
    • Folder Displays the folder where the file is found.
  4. If a certain number of items have been found, page navigation buttons in the local toolbar may be enabled. You can use these buttons to go to additional pages to display more items. You can also click View All in the local toolbar to see all results on a single page. Keep in mind that the more items you have in the project, the longer it will take to load this view.

How to Fix Undefined File Tags

There are a couple of basic ways to fix an undefined file tag. First, you can rename the file tag or file tag set so that it matches what you have associated with the file. Otherwise, you can re-associate the file tag with the file so that it uses an existing file tag or file tag set.

To Rename File Tags

  1. In the window pane, select all file tag occurrences that you want to rename. If you want to select all rows click Click to select all rows.. You can hold the SHIFT key to select a range, or you can hold the CTRL key to select individual items.

    Note All file tag occurrences that you select will be renamed to the same file tag that you provide in the following steps.

  2. In the local toolbar, click the Rename button. The Rename File Tag(s) dialog opens.
  3. In the New file tag name field, enter a new file tag name. Type the name of the file tag set, followed by a period, then the name of the file tag (e.g., AuthorTagSet.Bob).
  4. Click OK.

  5. A message lets you know how many files were changed. Click OK. All of the selected file tag occurrences are renamed.

    Note If you want to undo the conversions, you can use the Backups window pane (View > Backups). See Restoring Backup Files.

To Re-associate File Tags

  1. Open the Flare project that contains the file.
  2. In the Content Explorer or Project Organizer, right-click on the file and select Properties.
  3. Select the File Tags tab.
  4. Select the appropriate file tag set and file tag.
  5. Click OK.

What’s Noteworthy?

Note Another way to associate a different file tag to many places throughout a project is to use the Find and Replace in Files feature in Flare Desktop. For example, let's say that you originally associated a file tag named "Completed" (from the "Status" file tag set) with a lot of files in your project. Later, you renamed the file tag "Finished." You can perform a find and replace in your entire project. In the "Find" field, you can enter Status.Completed, and in the "Replace with" field, you can enter Status.Finished. Also, make sure you select the "Find in source code" option in the Find and Replace in Files window pane. After replacing this text throughout your project, that file tag will no longer be considered "undefined" in Flare Desktop. See Find and Replace.

Note You can also include this information in reports that you create. See Reports.
